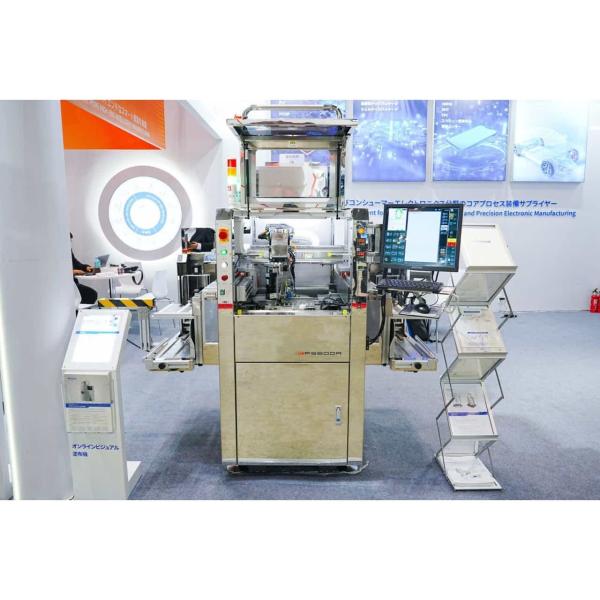

Inline Visual Dispensing & Printing Machine for CCM Dustproof Glue

The FS600A is a cost-effective, fully automatic inline dispensing and pad printing solution built for modern cleanroom production lines. It integrates high-speed inline glue dispensing with precision pad printing to achieve ultra-thin and uniform coating for dustproof applications on CCM, VCM, LENS, and LCM components.

With support for tilting heads, bottom heating, and advanced visual positioning, the FS600A guarantees precise material placement and excellent adhesion performance. The entire system is equipped with a Class A mineral base structure to minimize vibration and deliver consistent, repeatable results. The FS600A also supports whole-process inspection for glue breaks, overflow, and missing spots — ensuring every unit meets quality requirements before leaving the line.

Core Advantages

• Ultra-Thin Glue Printing

  The FS600A pad printing module is ideal for applications where glue thickness must be under 30µm — delivering smooth, even coating with minimal material waste.

• Precision + Speed

  High-speed linear motors and grating ruler feedback provide positioning accuracy up to X/Y ±0.015mm, supporting high UPH without sacrificing stability.

• Integrated Glue Inspection

  Built-in AOI checks for glue presence, breakage, overflow, and thickness in real-time — reducing rework and scrap rates.

• Flexible Production

  Compatible with various glue types for underfill, dam & fill, lens bonding, dustproof gluing, solder paste dispensing, FPC reinforcement, and more.

Typical Applications

✔ CCM Dustproof Glue Printing
✔ VCM Lens Module Assembly
✔ Mobile Camera Module Underfill
✔ LCM Frame Bonding
✔ FPC Component Reinforcement
✔ SMD Encapsulation
✔ Middle Bezel PUR Adhesive Printing
✔ Optical Component Gluing
✔ Precision SMT Production Lines
✔ LED Module Assembly

FAQ

Q1: What glue types does the FS600A support?
A: The FS600 series is compatible with various fluids, such as epoxy, UV glue, PUR, solder paste, and dustproof sealants.

Q2: How does the FS600A ensure ultra-thin glue layers?
A: Its high-precision pad printing head guarantees even glue distribution below 30µm. Real-time AOI checks glue thickness after printing to maintain stable quality.

Q3: Can it connect with existing production lines?
A: Yes. The FS600A fully supports inline conveyor systems, real-time MES docking, and can easily integrate with SMT and CCM module lines.
